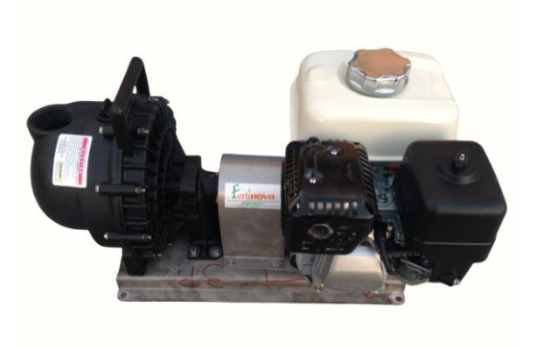

Banjo centrifugal pump made of fiberglass reinforced polypropylene. It has a high resistance to corrosion, superior to any other type of pump with similar characteristics. It is self-priming and self-suction with an internal check valve, up to a height of 4-6 m. It has a high quality carbon-ceramic mechanical seal. Widely used in the transfer of liquid fertilizers, sea water, insecticides and a wide variety of non-abrasive chemical products. Mounted on bench with 5.5 HP gasoline engine.
Characteristics
Max flow rate: 49 m3/h.
Max pressure: 3.6 bar.
Materials: Polypropylene, FKM/EPDM, stainless steel.
Fiberglass reinforced polypropylene (FRP) body.
Cast iron pedestal with top quality bearings.
Suction and discharge in 2''.
FKM gaskets (viton type) model 205PBVGX160 or EPDM model 205PBGX160.
AISI316 stainless steel screws.
Full availability of pump body spare parts.
HONDA GX160 engine.
Mounting on stainless steel bench, separate motor and pump connected by 75 mm elastic coupling, chrome plated steel.
