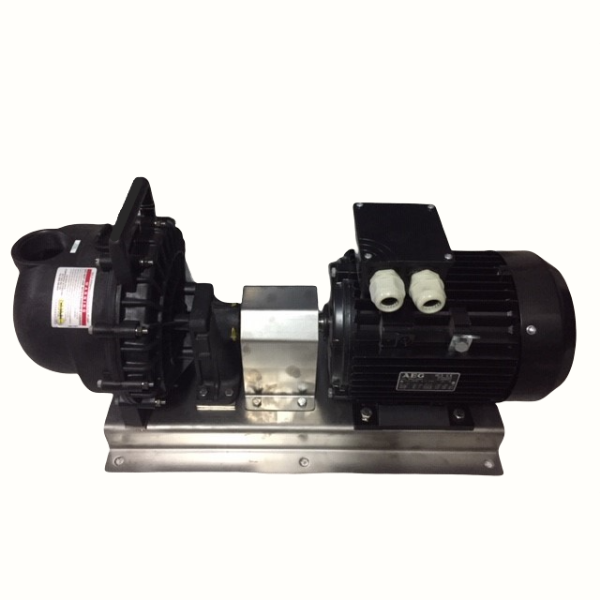

Pedestal pump on 2″ bench with three-phase electric motor, 5.5 HP PP-VITON

Banjo centrifugal pump made of fiberglass reinforced polypropylene. It has a high resistance to corrosion, superior to any other type of pump with similar characteristics. It is self-priming and self-suction with an internal check valve, up to a height of 4-6 m. It has a high quality carbon-ceramic mechanical seal. Widely used in the transfer of liquid fertilizers, sea water, insecticides and a wide variety of non-abrasive chemical products. Mounted on bench with 5.5 HP electric motor.

Characteristics

Max flow rate: 49 m3/h.

Max pressure: 3.6 bar.

Materials: Polypropylene, FKM/EPDM, stainless steel.

Fiberglass reinforced polypropylene (FRP) body.

Cast iron pedestal with top quality bearings.

Suction and discharge in 2''.

FKM gaskets (viton type) model 205PBVM3F55 or EPDM model 205PBM3F55.

AISI316 stainless steel screws.

Full availability of pump body spare parts.

Three-phase electric motor 230/400V 4KW 3000 RPM B3 IE3 IEC112 AEG legs.

Mounting on stainless steel bench, separate motor and pump connected by 75 mm elastic coupling, chrome plated steel.
